Abstract

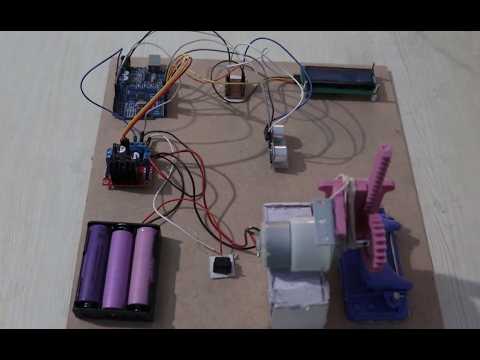

This project presents the design and development of an Arduino-based Automatic Paper Hole Punch Device that automates the paper punching process using sensors and motor control. The system is built using an Arduino microcontroller, ultrasonic sensor, LCD display, motor driver module, DC motor, and a mechanical punching unit.
The ultrasonic sensor is used to detect the presence and correct positioning of paper near the punching area. Once the paper is detected within a predefined distance, the Arduino processes the sensor data and triggers the motor driver to activate the DC motor. The DC motor converts electrical energy into mechanical motion to operate the punching mechanism automatically. After the punching operation is completed, the motor stops, ensuring precise and controlled operation.
An LCD display is integrated to provide real-time system status such as paper detection, punching operation, and idle state. This enhances user interaction and monitoring of the device. The motor driver ensures safe and efficient control of the DC motor by handling current and voltage requirements.
The proposed system reduces manual effort, improves punching accuracy, and increases operational speed compared to traditional manual hole punching machines. This device is suitable for use in offices, schools, and printing units where repetitive paper punching tasks are required. The project demonstrates the practical application of embedded systems, sensor integration, and electromechanical automation in real-world office equipment.
Introduction
In modern offices, educational institutions, and printing environments, paper handling operations such as hole punching are performed frequently. Conventional paper hole punching machines are manually operated and require continuous human effort, which can lead to fatigue, inconsistent punching accuracy, and reduced productivity when large volumes of paper are involved. With the advancement of embedded systems and automation technologies, there is a growing need to replace manual operations with automated solutions that improve efficiency and reliability.
Automation using microcontroller-based systems plays a vital role in reducing human intervention and enhancing precision in everyday applications. Arduino, being an open-source and cost-effective microcontroller platform, is widely used for developing automated control systems. By integrating sensors, motor drivers, and display units, Arduino-based systems can effectively monitor conditions and control mechanical operations in real time.
The Arduino-based Automatic Paper Hole Punch Device is designed to automate the hole punching process by detecting paper presence and activating a motor-driven punching mechanism. An ultrasonic sensor is used to sense the position of the paper, while a DC motor controlled through a motor driver performs the punching operation. An LCD display provides real-time feedback to the user regarding system status and operation.
This project aims to demonstrate the practical application of embedded systems in office automation by developing a reliable, efficient, and user-friendly paper hole punching machine. The system minimizes manual effort, ensures consistent hole placement, and improves overall operational efficiency. The proposed solution highlights the integration of hardware and software components to achieve precise electromechanical control in a real-world application.

Objectives
1. To design an automatic paper hole punching system using Arduino.
2. To detect paper using an ultrasonic sensor.
3. To operate a punching machine using a DC motor and motor driver.
4. To reduce manual work in paper punching.
5. To improve speed and accuracy of hole punching.
6. To display system status on an LCD screen.
